PumpController

Content

• Project description
• Usage
• Hardware
• Libraries

Project description

Arduino Controller for water pump

Usage

1. Turn to change lower threshold
2. Hold and turn to change upper threshold
3. Hold to save thresholds to EEPROM
4. Click to display current pressure

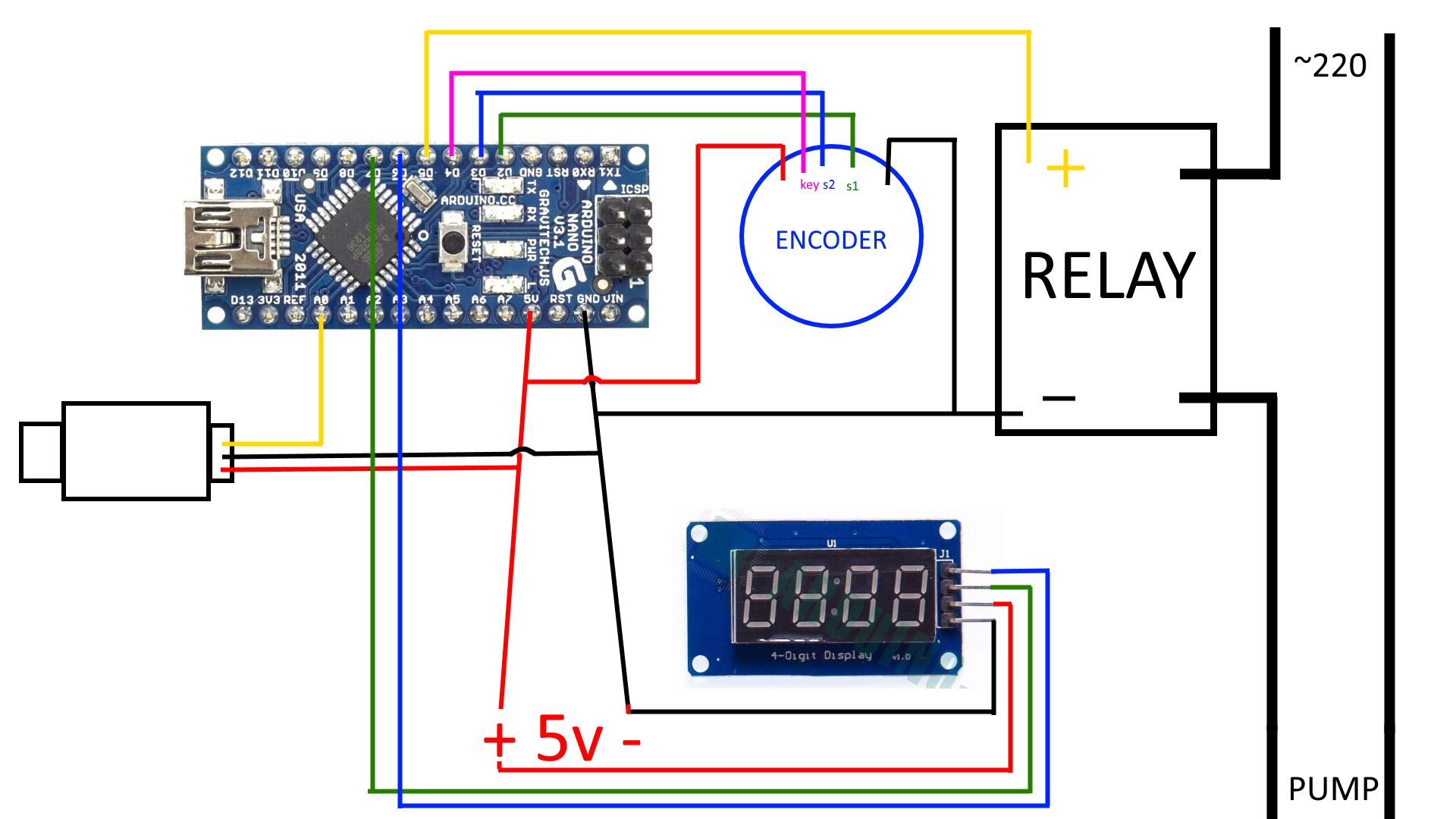

Scheme:

Hardware

Name	Model
Controller	Arduino Nano ATmega328
Encoder	EC11
Display	TM1637
Relay	SSR-40DA
Pressure sensor	EBOWAN

Libraries

• GyverTM1637
• EncButton

▲
