Project description
Arduino Controller for water pump
Usage
- Turn to change lower threshold
- Hold and turn to change upper threshold
- Hold to save thresholds to EEPROM
- Click to display current pressure

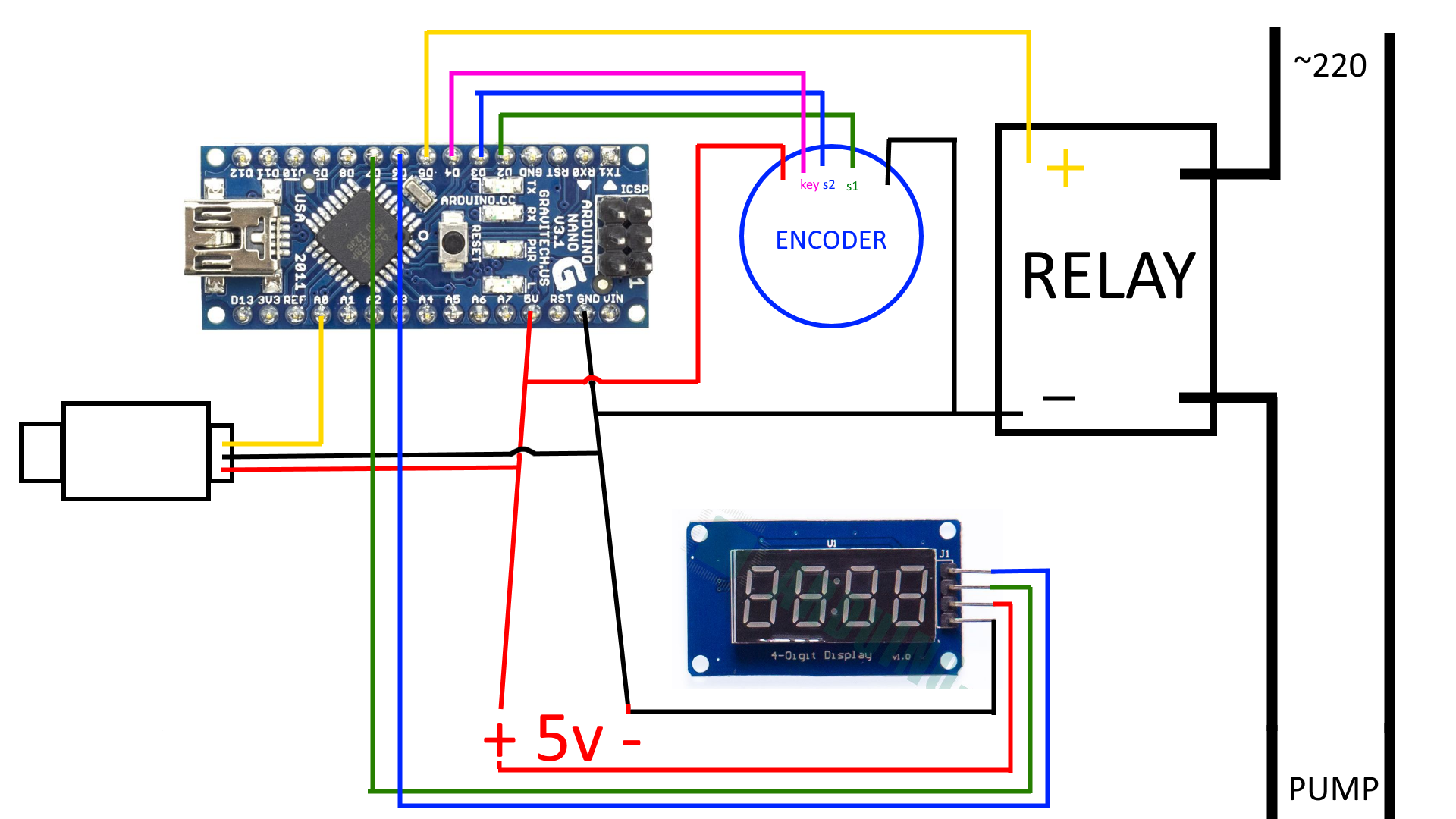

Scheme:
Hardware
| Name | Model |
|---|---|
| Controller | Arduino Nano ATmega328 |
| Encoder | EC11 |
| Display | TM1637 |
| Relay | SSR-40DA |
| Pressure sensor | EBOWAN |
Libraries
ToDO
- create board on easyeda
- LGT8F328P
- average pressure
